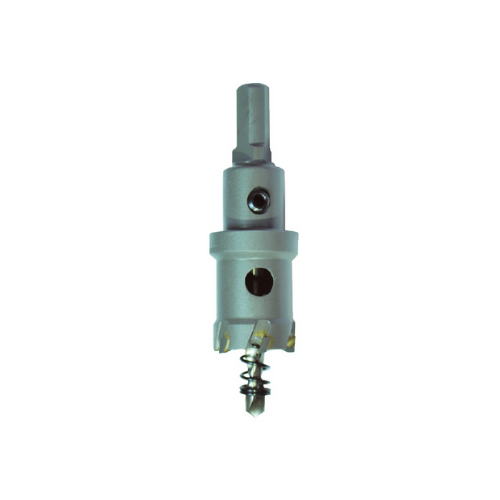

NIETZ Tungsten Carbide Tipped Hole Saw (Stainless Steel)

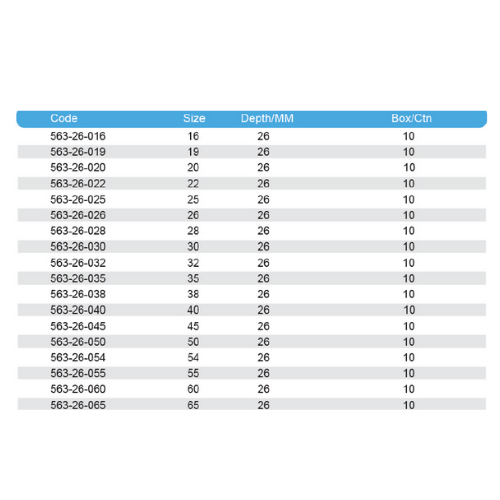

CODE: 563-26-0XX
Product Description:
- CAPACITY: Out Dia: 15mm ~ 65mm, Cutting Depth: 5mm thickness
- MAIN APPLICATIONS: This product is for drill operation on stainless steel sheets or square wares, cast irons, iron plates, and F.R.P formed products
- SPECIAL FEATURES:
- Designed for tough drilling on 5mm thick stainless steel sheet
- To make a deeper hole in one performance. Max. Depth to finish 50mm
- Low wear-off
- Chip Groove: Adopt the arc spiral chip groove to smoothly discharge iron chips, reduce the built-up edge, and effectively prevent stoppage and tipping caused by blocking the iron chips between the cutting blade and the processed material; the iron chips can be quickly discharged even if the thick steel plate is processed.
- Hard High-Intensity Alloy Blade: The hard high-intensity high-sharpness alloy blade maintains excellent chipping resistance and abrasion resistance with agile cutting force under bad operating conditions. The alloy blade is combined with vibration-resistance teeth to achieve smooth and steady drilling and greatly improve the service life.
- Geometric Design of Special Blade: The special blade features a three-layer combination design of an external cutting blade, a middle cutting blade, and an internal cutting blade for layering and component cutting. The hole inside is equipped with the cutting blade to reduce cutting resistance and smoothly discharge chips. The cutting blade is specially grinded to avoid tipping and prolong the drill's service life.
- Depoling Hole: The cutter side includes a depoling hole to conveniently remove the cylindrical material core from the hole
