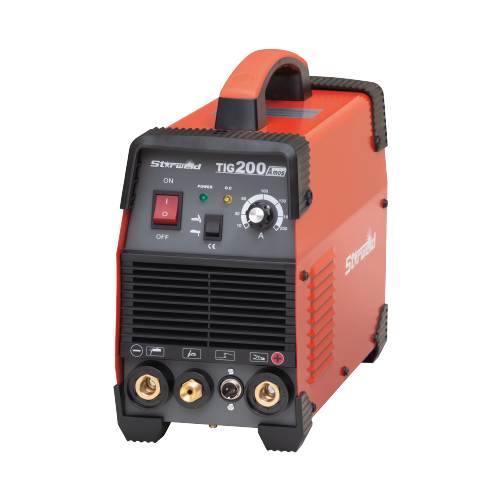

NIETZ TIG Series Welding Machine (TIG 200A)
CODE: NZ_SWTIG200A
Product Description:
- Model: TIG 200A
- Invertor Technology: MOSFET
- Net Weight: 8.0 kg
- Machine Dimension: 580 x 260 x 340mm ±
- TIG 200A is equipped with powerful MOS components. High frequency starting, ideal choice for maintenance or manufacturing.
- With MMA function
- DC inverter MOSFET technology
- Strong high frequency for easy starting
- Stable and reliable ARC
- 35 - 50mm sockets
- Can weld stainless steel, carbon steel, low alloy steel
- Three PCB construction

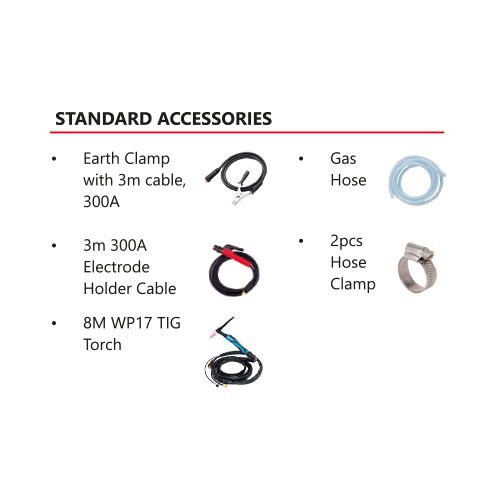

- Earth Clamp with 3m cable 300A
- 3m 300A Electrode Holder Cable
- 8M WP17 TIG Torch
- Gas Hose
- 2pcs Hose Clamp
- Input Voltage (V): AC220V-50/60Hz
- Input Power (KW): 9.6
- Rated Input Current (A): 28.0 / 43.6
- Output Current Range (A): TIG 10 ~ 200 / MMA 30 ~ 175
- Rated Output Voltage (V): 18 / 28
- No-load Loss (W): 40
- No-load Voltage (V): 56
- Duty Cycle (%): 60
- Power / Insulation Grade: IP21 S/F
- Welding Process: TIG / MMA
- Recommended Electrode Diameter: 2.5 / 3.2mm (for MMA Mode)
- Gas: Argon / Unnecessary
- Packing Dimension: 375 x 153 x 255mm ±

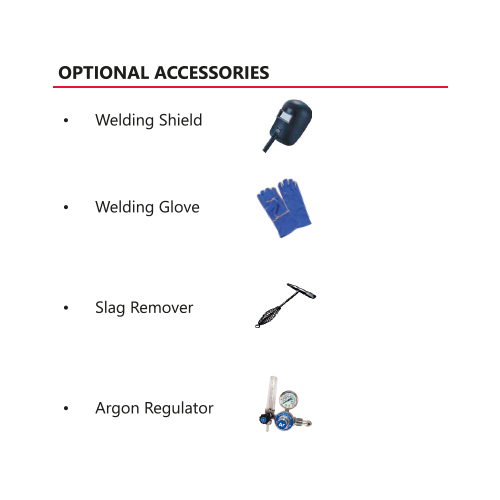

- Welding Shield
- Welding Glove
- Slag Remover
- Argon Regulator
