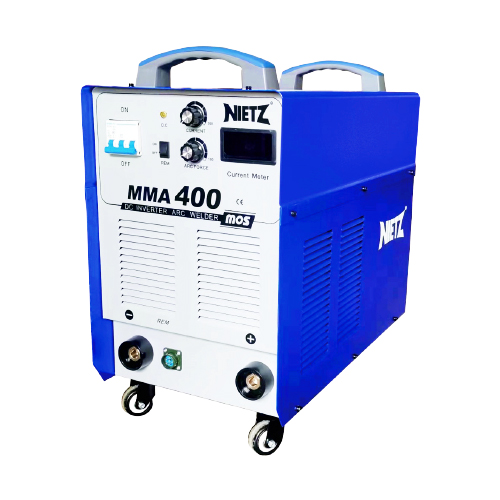

NIETZ MMA Series Welding Machine (MMA 400IJ)
CODE: NZ_SWMMA400IJ
Product Description:
- Model: MMA 400IJ
- Invertor Technology: IGBT MODULE
- Net Weight: 29.0 kg
- Machine Dimension: 550 x 280 x 510mm ±
- MMA 400IJ welding machine continues to incorporate advanced features that make welding simple and easy. Portable assist professional welder in producing a high quality and safe weld.
- More user-friendly
- Simple operation, economical application
- Suitable for acid and basic type electrodes
- 4.0 / 5.0mm electrode continuously
- Overheat and overcurrent self-protection function
- VRD / ARC force, hot start function
- Max. current 400A

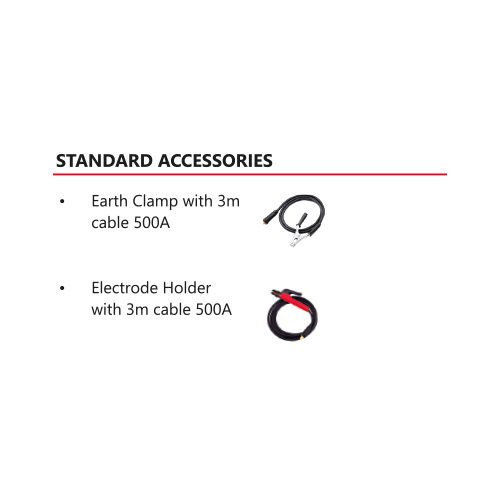

- Earth Clamp with 3m cable 500A
- Electrode Holder with 3m cable 500A
- Input Voltage (V): AC415-50/60Hz
- Input Power (KW): 18.2
- Rated Input Current (A): 27.3
- Output Current Range (A): 30 ~ 400
- Rated Output Voltage (V): 36
- No-load Loss (W): 100
- No-load Voltage (V): 68
- Duty Cycle (%): 100
- Power / Insulation Grade: IP21 S/F
- Welding Process: MMA
- Recommended Electrode Diameter: 4.0 / 5.0mm
- Gas: Unnecessary
- Packing Dimension: 660 x 390 x 620mm ±

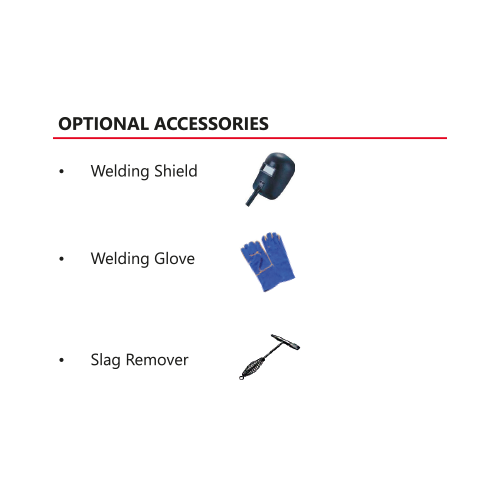

- Welding Shield
- Welding Glove
- Slag Remover
