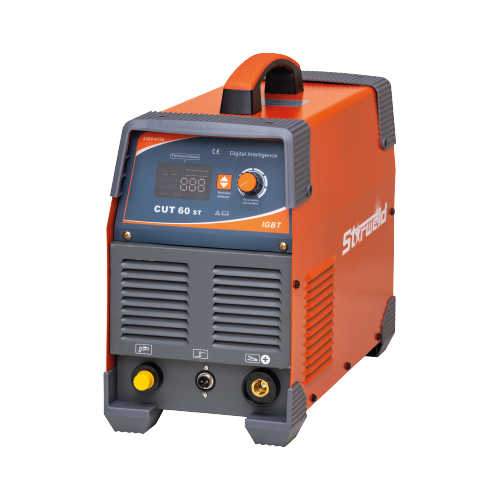

NIETZ Air Plasma Series Cutting Machine (CUT 60ST)
CODE: NZ_SWCUT60ST
Product Description:
- Model: CUT 60ST
- Invertor Technology: IGBT
- Net Weight: 10.5 kg
- Machine Dimension: 455 x 203 x 390mm ±
- CUT 60ST air plasma cutting machine is a digital smart cutter with dual voltage capability (180-250V single phase and 300-440V three phase). This flexibility allows use in various locations, accommodating both stable and unstable power supplies.
- Digital smart welder
- Multifunction digital display
- Post-flow control
- PWM control system
- Max. current 60A

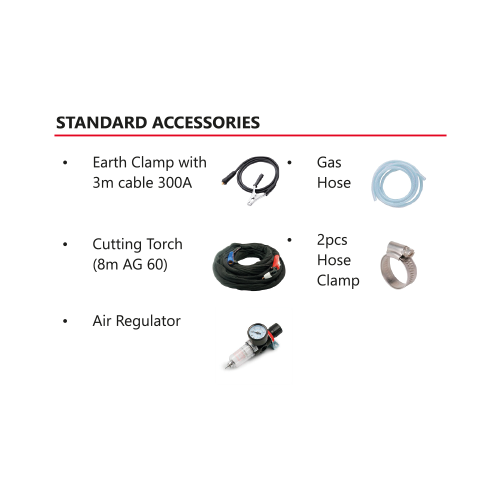

- Earth Clamp with 3m cable 300A
- Cutting Torch (8m AG 60)
- Air Regulator
- Gas Hose
- 2pcs Hose Clamp
- Input Voltage (V): AC220V/415V-50/60Hz
- Input Power (KW): 10.7 / 7.9
- Rated Input Current (A): 48.5 / 12
- Output Current Range (A): 20 ~ 60
- Rated Output Voltage (V): 104
- No-load Loss (W): 60
- No-load Voltage (V): 239
- Duty Cycle (%): 60
- Power / Insulation Grade: IP21 S/F
- Welding Process: Air Plasma
- Recommended Electrode Dimension: 2.5 / 3.2mm
- Gas: Air (Air Compressor)
- Packing Dimension: 540 x 330 x 420mm ±

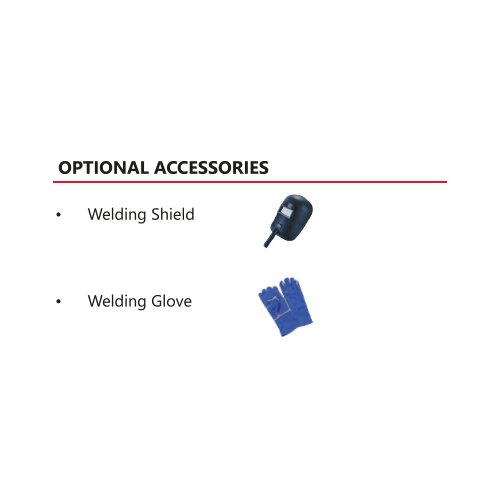

- Welding Shield
- Welding Glove
