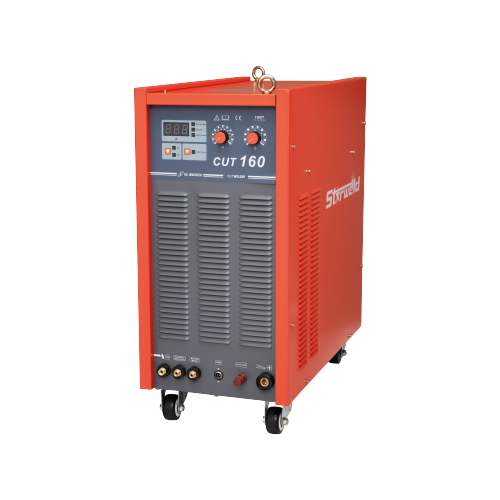

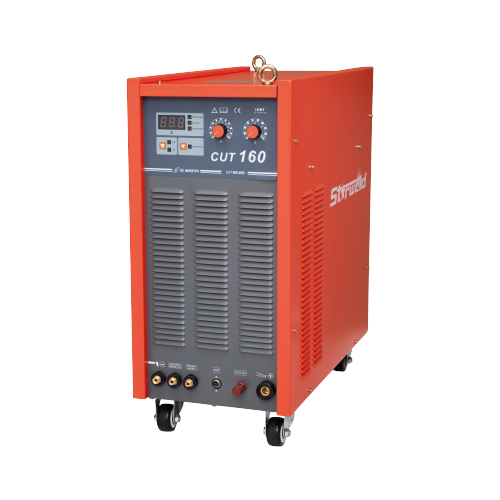

NIETZ Air Plasma Series Cutting Machine (CUT 160)
CODE: NZ_SWCUT160
Product Description:
- Model : CUT 160
- Weight: 60kg
- lnvertor Technology : IGBT MODULE
- Machine Dimension : 770 x 390 x 870mm ±
- CUT 160 is a professional high-end cutting inverter equipped with the last IGBT dual module technology. This technologically advanced plasma inverter is extremely user- friendly & offers reliable cutting performance.
- Digital industrial cutter
- IGBT dual module plasma cutting inverter maximum current 160A
- Can punch a hole or groove welding
- PWM control system
- Advanced ARC pilot system design, 100% ARC start
- Main transformer of crystallite
- 2T / 4T function

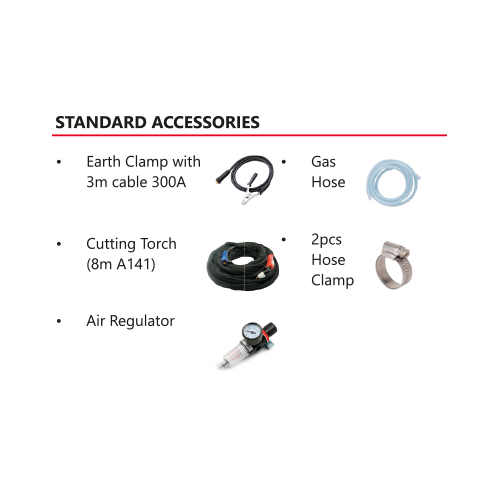

- Earth Clamp with 3m cable 300A
- Cutting Torch (8m A141)
- Air Regulator
- Gas Hose
- 2 Pieces Hose Clamp
- Input Voltage (V): AC415V-50/60Hz
- Input Power (KW): 29.2
- Rated Input Current (A): 44.3
- Output Current Range (A): 20 - 160
- Rated Output Voltage (V): 144
- No-load Loss (W): 100
- No—load Voltage (V): 320
- Duty Cycle (%): 100
- Power / Insulation Grade: IP21 S/F
- Welding Process: Air Plasma
- Packing Dimension: 770 x 390 x 870mm±

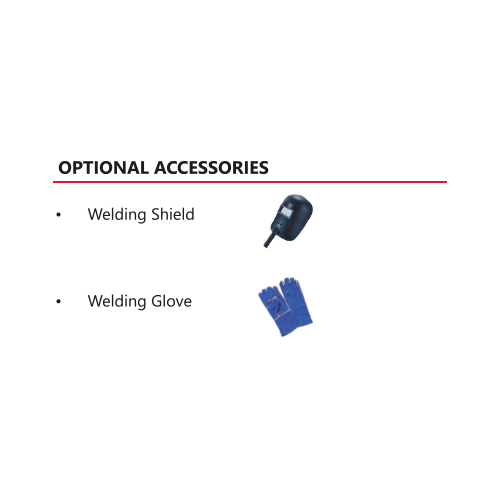

- Welding Shield
- Welding Glove
